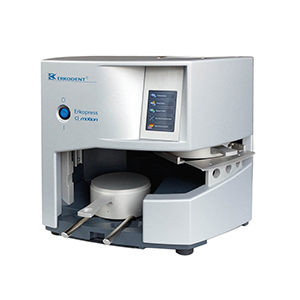

Automated pressure forming unit with built in compressor

• Completely automated thermoforming process.
• Easy operation, Erkodent material heating and cooling times pre-programmed.
• Custom programs easily added.
• Touchless patented temperature sensor for accurate determination of the actual material temperature with no preheating.
• The hot foil is formed vertically onto the model for uniform thicknesses.
• The adaption is instantaneous when the cylinder is engaged.
• Outstanding workplace safety with automatic switch-off function.
• Medium-wave infrared heating without preheating required.
• No external air supply required.

Technical data:
H 32cm/W 33cm/D51 cm
Weight: 21.3kg
Operating pressure: up to 6 bar
Operating voltage: ~220 - 240 (100, 110 - 120) volt,
50 - 60 hertz
Wattage: max. 440 watt
Noise level: <70 dB(A)
